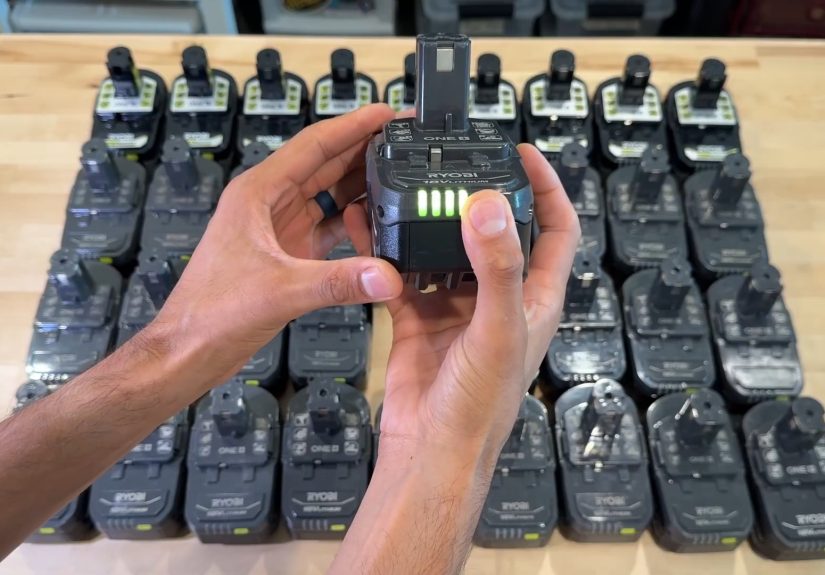

Battery Repair By Reverse Engineering

Batteries are like introverts at a party: they look calm, stay quiet, and then suddenly collapse when everyone needs them most.
One minute your device says 47%, the next minute it says “goodbye forever.” Traditional repair often treats that as a simple part swap.
Reverse engineering takes a smarter route. Instead of guessing, it asks: What exactly failed, why did it fail, and what is the safest next move?

In practical terms, battery repair by reverse engineering means rebuilding the “story” of a battery from measurable cluesvoltage behavior,
temperature trends, charge acceptance, protection-circuit events, and system logs. The goal is not reckless tinkering. The goal is disciplined diagnosis:
repair when safe and sensible, retire when risky, and recycle when repair would be irresponsible.

This guide explains how the method works, where it adds real value, and how to do it in a way that respects safety, law, and common sense.
We’ll keep the tone light, but the standards high.

What “Reverse Engineering” Means in Battery Work

Reverse engineering does not mean “open it first and think later.” In battery repair, it means deriving system behavior from external evidence,
then validating hypotheses with controlled tests. You’re essentially doing a technical autopsyon a patient that might still be alive.

The Three Layers You Decode

• Electrochemistry: capacity fade, impedance rise, self-discharge, and thermal sensitivity.
• Electronics: protection circuits, sense lines, balancing behavior, charge path limits.
• Firmware/logic: state-of-charge estimation, lockout thresholds, authentication, fault flags.

When technicians skip one of these layers, misdiagnosis is common. A “dead battery” may actually be a miscalibrated fuel gauge.
A “bad charger” may be a protection cutoff doing its job. A “cell problem” may be thermal throttling. Reverse engineering separates symptoms from root causes.

Why This Approach Matters Now

Battery-powered products are everywherephones, laptops, tools, scooters, e-bikes, home backups, and EVs.
As products become more software-defined and tightly integrated, old-school repair-by-replacement becomes less effective and more expensive.
Reverse engineering helps repair teams make evidence-based decisions that are safer for users and better for business.

It also supports circular economy goals. A battery that fails one use case may still have value in another. A module that cannot be trusted for high-load mobility
might still be viable for lower-demand applications after rigorous screening. But that only works if diagnostics are robust and conservative.

Common Failure Patterns You Can Detect Without Destructive Teardown

1) Capacity Fade With “Normal” Voltage Curves

The battery charges and discharges normally, but runtime keeps shrinking. This often indicates aging chemistry rather than abrupt electrical damage.
Reverse engineering here focuses on trend data: cycle history, coulomb counting drift, and under-load sag over time.

2) Rising Internal Resistance

Devices shut down under burst load even with moderate state-of-charge. Voltage collapses quickly, then rebounds when load is removed.
This pattern often points to impedance growth. The repair decision may be “retire and recycle,” because performance and safety margins can narrow simultaneously.

3) Cell Imbalance

Packs can fail early when one subgroup reaches voltage limits ahead of the rest. The pack-level number may look acceptable while one section is at the edge.
Reverse engineering identifies imbalance through controlled charge/discharge signatures and balancing behavior observation.

4) Protection-Layer Events Misread as Random Bugs

Overcurrent trips, thermal cutoffs, and undervoltage lockouts can mimic “ghost failures.” What looks intermittent may be repeatable under specific thermal or load conditions.
Good diagnostics map fault triggers and recovery conditions before any hardware decision is made.

A Safe, Professional Reverse-Engineering Workflow

The workflow below is intentionally high-level and safety-first. It avoids risky, step-by-step guidance for opening or rebuilding lithium packs.
If a battery is swollen, punctured, overheated, water-damaged, recalled, or emitting odor/smoke signs, isolate it and escalate to trained professionals.

Stage 1: Intake and Risk Triage

• Document device history, charging habits, incident reports, and environmental exposure.
• Screen for immediate red flags: swelling, deformation, heat damage, liquid ingress, unusual odor, physical trauma.
• Classify as: testable, restricted-test, or no-test (direct safe disposal/recycling path).

Stage 2: Non-Invasive Characterization

• Measure open-circuit behavior, load response, and thermal profile under controlled conditions.
• Compare results to expected envelopes for that chemistry and product class.
• Capture repeatability: one odd reading is noise; repeatable deviation is signal.

Stage 3: Protocol and BMS Behavior Mapping

• Observe charge negotiation and fault flags where available.
• Identify whether cutoffs are electrochemical limits or logic-enforced restrictions.
• Validate whether firmware estimates (state of charge/health) match measured behavior.

Stage 4: Decision Matrix

• Repair path: only if safety margins, stability, and compliance are clear.
• Refurbish path: only after conservative screening and application matching.
• Recycle path: when uncertainty or risk is high, or economics are poor.

The smartest battery repair shop is not the one that “fixes everything.” It is the one that knows exactly what not to fix.

Tools and Techniques Behind Modern Battery Diagnostics

Pulse-Based Testing and Dynamic Profiles

Short pulse tests can reveal state-of-health clues much faster than full long-duration cycling. Dynamic profiles often reflect real-world usage better than static lab routines.
This improves triage speed and helps teams process larger diagnostic volumes with less guesswork.

Thermal Monitoring as a First-Class Signal

Temperature is not a side metricit is central. Thermal asymmetry can expose hidden internal problems early.
In advanced contexts, acoustic and thermal signatures are being paired with data models to identify risk before visible failure.

Imaging and Forensics

Non-destructive imaging methods (for research and industrial labs) provide insight into internal structures, reaction zones, and degradation pathways.
Repair organizations usually do not run national-lab instrumentation, but they can adopt the same principle: infer internals from validated external signatures.

Machine Learning, Used Carefully

ML can accelerate state estimation and anomaly detection, especially when paired with physics-informed constraints.
But high-confidence repair decisions still require human review, controlled validation, and conservative thresholds.
“The model said so” is not a safety standard.

Battery Safety Rules That Should Never Be Optional

If reverse engineering is the brain of battery repair, safety is the spine.
Any workflow that treats safety as “extra credit” eventually becomes a fire drill.

Non-Negotiables for Teams

• Use product-specific batteries and compatible charging systems.
• Do not normalize swollen battery handling as routine work.
• Control short-circuit risk in storage, handling, and transport.
• Maintain temperature-aware charging and storage practices.
• Escalate damaged, defective, or recalled units to compliant pathways.

A practical mindset helps: every battery is stable until proven otherwise, and every anomaly is serious until disproven.
That sounds strict. It also keeps everyone employed and unburned.

Legal and Policy Context: Reverse Engineering Is Powerful, Not Lawless

The right-to-repair landscape has evolved, and battery work sits right in the middle of it.
Policy discussions increasingly support diagnosis and repair access, especially where restrictions reduce competition and user choice.
At the same time, safety and cybersecurity concerns are real and can shape boundaries.

For repair professionals, the practical takeaway is simple:
understand your jurisdiction, document your process, avoid circumvention outside lawful exemptions, and never market unsafe modifications as “advanced repair.”
Good legal hygiene is part of technical quality.

Real-World Example Scenarios

Scenario A: “My Phone Dies at 25%”

Symptom: sudden shutdown with apparently healthy percentage.
Reverse-engineering interpretation: gauge drift plus elevated internal resistance under transient load.
Best outcome: calibrated diagnosis, safe battery service pathway, and verification against thermal behaviornot blind part swapping.

Scenario B: E-Bike Range Fell Off a Cliff

Symptom: normal charging indicator, poor real-world range.
Interpretation: possible cell imbalance, aging under high-current duty, or charger compatibility issue.
Outcome: classify pack by risk and recoverability; if uncertainty remains high, route to compliant replacement/recycling rather than aggressive rework.

Scenario C: Tool Battery “Works Sometimes”

Symptom: intermittent tool cutout.
Interpretation: protective cutoff triggered under peak current and heat.
Outcome: confirm repeatable trigger windows; repair only if the fault is in safe, serviceable subsystems and post-repair behavior is stable.

The Business Case for Reverse-Engineered Battery Repair

Done right, this approach improves margin and trust at the same time.
Shops reduce unnecessary replacements, shorten diagnosis cycles, and improve first-pass accuracy.
Customers get transparent decisions: repair, replace, repurpose, or recyclewith reasons.

It also lowers downstream risk. A rushed “repair” that returns as a safety incident can destroy brand reputation faster than any bad review thread.
Reverse engineering introduces disciplined evidence trails that protect both customers and repair providers.

Where the Field Is Headed

Expect three trends: faster diagnostics, better safety prediction, and stronger circular pathways.
State-of-health and state-of-safety frameworks will become more standardized. Sensor-rich systems will make pre-failure signals easier to detect.
Regulations and standards will keep tightening around transport, micromobility, counterfeit components, and pack tampering.

In short, the future belongs to repair ecosystems that combine engineering rigor, legal literacy, and safety culture.
The screwdriver still mattersbut the data model now sits beside it.

Conclusion

Battery repair by reverse engineering is not a trend phraseit is a mature mindset.
It replaces “swap and pray” with structured diagnosis, risk-aware decisions, and verifiable outcomes.
It helps teams repair more intelligently, reject unsafe work faster, and move unrepairable units into responsible recycling channels.

If you remember one rule, make it this: the best battery repair is not the one that looks heroic on social media;
it is the one that is technically sound, legally clean, and boringly safe in the real world.
Boring, in this case, is beautiful.

Experience Add-On: from the Field on Battery Repair by Reverse Engineering

The most valuable lesson from real battery diagnostics is that failure rarely announces itself in dramatic ways at first. It usually whispers.
A tiny increase in heat near the same load point. A battery percentage that drops too quickly between 40% and 20%. A charger that “works” but takes longer each week.
Early in my work reviewing repair cases, I expected dramatic clues. In reality, the biggest wins came from respecting small, repeatable anomalies.

One recurring pattern was customer language versus engineering reality. A user says, “It won’t hold charge.” That could mean at least six different conditions:
aged chemistry, false state-of-charge reporting, background load, charging-path fault, thermal throttling, or protection-trigger behavior.
Reverse engineering helped us avoid assumptions by converting vague symptoms into measurable hypotheses. We built checklists that started with safe, external observations,
then moved to controlled tests. That simple discipline cut misdiagnosis dramatically.

Another field experience: not all “successful repairs” are truly successful. We saw cases where a pack seemed restored for a week, then came back unstable.
That changed our definition of done. A real repair had to pass post-service validation under varied conditions, not just power on once at the bench.
We started requiring thermal consistency, stable load response, and predictable charge termination before release. Comebacks dropped, and confidence rose.

Communication practices mattered just as much as technical ones. When customers understood the decision treerepair, retire, or recyclethey trusted outcomes more,
even when the answer was “do not repair.” Transparency was powerful: show what was measured, what thresholds were exceeded, and why risk outweighed benefit.
People are far more accepting of a “no” when it is evidence-based.

I also learned that legal and safety literacy saves time. Teams that ignored policy questions often paused projects late, after effort was already invested.
Teams that checked compliance early moved faster. They knew what diagnostics were allowed, what documentation was needed, and when shipping restrictions changed the plan.
In other words, compliance was not bureaucracy; it was throughput optimization in disguise.

The final lesson is cultural: good battery repair shops train judgment, not just technique. Tools can be taught in weeks. Judgment takes repeated exposure to edge cases.
We used peer reviews for ambiguous cases, and that process prevented overconfident calls. Someone always asked, “What evidence would change our mind?”
That one question improved both safety and technical quality.

If you want a practical summary from years of field patterns, here it is: start conservative, measure everything, document decisions, and never confuse activity with progress.
Reverse engineering is not about proving you can open a battery system. It is about proving you can understand it well enough to make the safest possible decision.
When teams adopt that mindset, repair quality improves, waste is reduced, and customers stop seeing batteries as mysterious black boxes.
They see a system that can be evaluated responsiblysometimes repaired, sometimes retired, always handled with respect.
