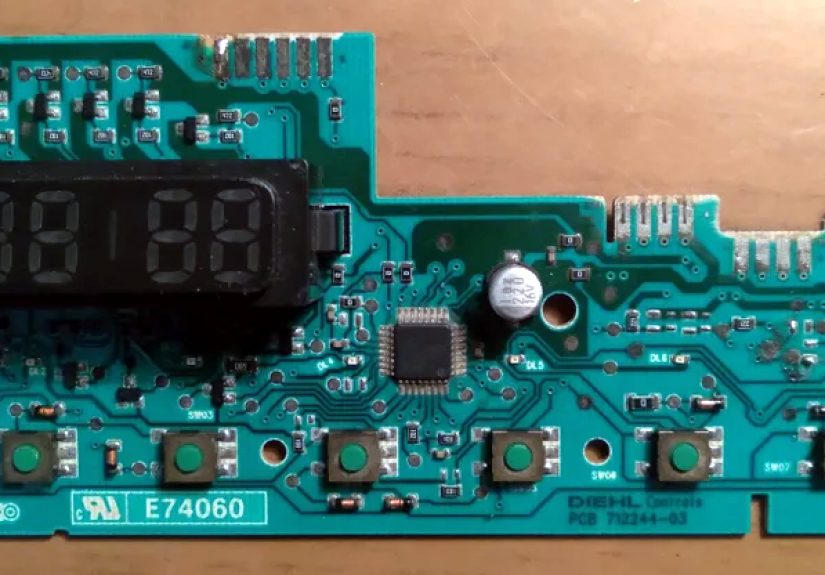

Dead Washer Lives Again With ATTiny

There are two kinds of laundry days: the ones where you fold warm towels like a responsible adult,
and the ones where your washing machine stares at you like a smug, silent vending machine that ate your money.
This is the story of the second kindspecifically, the day a “dead” washer came back to life thanks to a tiny
microcontroller with an outsized attitude: the ATtiny (often typed as ATTiny when we’re excited and/or panicking).

Before we jump in, a quick reality check: washing machines mix water, moving parts, and household electricity.
That combo deserves respect. This article is not a step-by-step guide for rewiring mains power or bypassing safety
interlocks. Instead, it’s an in-depth look at how makers think about rescuing appliancesoften by working on
the low-voltage control side (like buttons, sensors, and logic), and leaving high-voltage work to qualified
technicians when needed.

Why “Dead” Washers Usually Aren’t Dead (They’re Just Dramatic)

Modern washers are basically small robots with strong opinions. They don’t just spin and drain; they negotiate
with lid locks, water valves, pumps, motors, and sensorsthen throw a tantrum if any part of the conversation
sounds suspicious. When a washer “dies,” it’s often one of these broad categories:

• Power problems: outlet issues, tripped breakers/GFCI, damaged cords, or internal fuses.
• Interlock problems: door/lid switch or lid-lock mechanism not reporting “safe to run.”
• Control board trouble: the main electronic control board or user interface board stops responding.
• Peripheral failures: drain pump, inlet valve, motor control, or wiring harness problems.
• Environment issues: moisture, detergent residue, vibration, heat, and (the underrated villain) power surges.

Here’s the uncomfortable part: the most “mysterious” failures tend to look like nothingno lights, no beeps,
no movementyet they can still be caused by something as small as a flaky switch signal or a control board that’s
stuck in a bad state. And that’s exactly where a tiny microcontroller can sometimes help.

First, Do the Boring Stuff (Because It Works)

Makers love heroic hacks. Real fixes usually start with unglamorous checks. The goal is to separate
“the washer has no power” from “the washer has power but won’t start” from “the washer starts but won’t complete
a cycle.” The difference matters because each points to different failure chains.

A safe, practical triage checklist

• Confirm power at the outlet (test with a known-good device). If the outlet is dead, the washer is innocent.
• Check for obvious water or burning smells. If you see scorch marks or smell burning, stop and call a pro.
• Verify the door/lid closes correctly and the latch area isn’t blocked or misaligned.
• Listen for “life”: relays clicking, a faint hum, or LEDs flickering can indicate partial power.
• Look for consistent symptoms: Does it fail the same way every time, or is it random?

Many “won’t start” complaints trace back to door/lid sensing, user interface issues, or a control board that isn’t
interpreting inputs correctly. That’s not a guaranteebut it’s common enough that repair sites and manufacturer
support docs talk about it constantly. And it’s why “control logic” becomes a prime suspect.

So… Why an ATtiny?

The ATtiny family is a group of small AVR microcontrollers that punch above their size. They’re the sort of chips
you use when you don’t need a whole spaceship computeryou just need a dependable little brain that can:

• Read inputs (buttons, switches, sensors)
• Debounce and filter signals (because real-world buttons are noisy, like toddlers in a candy aisle)
• Generate timed outputs (clean pulses, PWM, simple state machines)
• Recover from weirdness (watchdog timers and brown-out detection help when power is messy)
• Do it cheaply (especially compared to a replacement control board)

In plain English: an ATtiny can act as a “translator” between a washer’s expectations and the messy reality of aging
components. It can also add stability features (like a watchdog reset strategy) to a system that’s otherwise stuck
with whatever robustness the original designers shipped.

The Most Common “ATtiny Washer Rescue” Patterns

The phrase “Dead Washer Lives Again” can mean a lot of things. In the maker world, it often means one of these
approacheslisted from “most reasonable on a weekend” to “maybe don’t do this unless you really know what you’re doing.”

1) The button-panel whisperer (low-voltage input emulation)

One of the most practical ATtiny use cases is when the washer’s main power and control board are fine, but the
user interface (membrane buttons, rotary encoder, or a flaky panel connection) is failing. Instead of replacing
an entire panel assembly, a microcontroller can:

• Read a new set of durable buttons or a knob module
• Output clean, consistent “button press” signals that mimic the original interface
• Debounce inputs so the washer doesn’t interpret one press as five

Think of it as a polite interpreter standing between your finger and an aging control board:
“Yes, the human said Start. Just once. Not seventeen times.”

2) The signal “deglitcher” (debounce + filtering for switches)

Switches don’t fail only by breaking; sometimes they fail by becoming indecisive. A lid switch might flicker between
open/closed due to vibration. A connector might oxidize just enough to create intermittent signals. An ATtiny can
apply sensible filtering:

• Require a signal to be stable for a minimum time before accepting it
• Reject microsecond “glitches” that confuse the control logic
• Preserve safety logic (for example, “open means stop” should always remain true)

3) The watchdog babysitter (recovery from lockups)

Appliances live in a harsh electrical world: motors start and stop, pumps switch, valves click, and power quality
can be inconsistent. Microcontrollers can get confused by brownouts and electrical noise. Many ATtiny chips support
brown-out detection and watchdog timers, which are basically the embedded equivalent of:
“If I stop making sense, reboot me and try again.”

In a washer rescue context, the ATtiny can monitor a “heartbeat” signal (like an LED pattern or logic state) from
the existing board and initiate a safe reset routine for the low-voltage control domain when the system is stuck.
The key word is safe: the default state should be “everything off,” not “let’s run the spin cycle forever.”

4) The sensor adapter (making old sensors speak modern logic)

Washers commonly rely on sensors like water level/pressure sensing, temperature inputs, motor feedback, and lid status.
Without getting into brand-specific service data, the big idea is this: sometimes the sensor still works, but the
board expects a cleaner signal than the sensor can provide.

An ATtiny with an ADC (analog-to-digital converter) can read a noisy analog sensor and output a stable, thresholded
digital signalagain, without bypassing safety. It’s less “cheating” and more “adding glasses so the control board
can see clearly.”

5) The “timing shim” (when milliseconds matter)

Some systems are picky about timinghow long a signal stays high, how quickly a latch is confirmed, or the order
of events at startup. If an aging button panel or connector introduces delays or bounce, the washer may refuse to start.
A microcontroller can produce consistent timing and sequence logic so the board receives what it expects.

Architecture That Doesn’t Set Your House on Fire

If you take only one technical lesson from this article, take this one: the smartest washer-rescue designs keep the
microcontroller on the low-voltage side, and treat any interaction with mains-powered components as a separate,
safety-critical domain.

What “low-voltage side” usually means

• Buttons, LEDs, and panel signals
• Logic-level sensor outputs (or conditioned sensor signals)
• Communications lines between UI and main board (in some designs)

If switching higher-power loads is involved

In some appliances, control boards ultimately switch things like pumps, valves, or motors through relays or solid-state
switching components. If your project touches that domain, the bar for safety goes way up: isolation, enclosure,
proper creepage/clearance, strain relief, and parts rated for the application all matter. This is where a qualified
repair techand certified replacement partsare often the best move.

Makers often use opto-isolated interfaces and properly rated modules to keep the logic side electrically isolated.
Even then, safety isn’t a vibe; it’s engineering. When in doubt, keep the ATtiny as a “signal brain” and let the
original washer hardware (or a professional repair) handle the heavy lifting.

Firmware Habits That Make an Appliance-Grade Project Feel “Real”

A washer isn’t a weekend blinking-LED demo. It’s an appliance that people trust with water, clothing, and time.
If you’re building a microcontroller “patch,” reliability features are non-negotiable:

Use a simple state machine

Don’t write “if this then that” spaghetti. Use explicit states like IDLE, WAIT_FOR_STABLE_LID, BUTTON_PULSE,
ERROR. It’s easier to test, easier to debug, and less likely to surprise you later.

Default to safe outputs

On boot and on fault: outputs off, no latching behavior, no “last known state” that might be unsafe. If the ATtiny
resets unexpectedly, the washer should not suddenly do anything exciting.

Brown-out and watchdog strategy

Brown-out detection helps prevent “half-awake” behavior when voltage dips. A watchdog timer can reset the microcontroller
if code execution stalls. Together, they make the system resilient to real-world power noise.

Make debugging visible

A single status LED can be a life-saver. Use blink codes for “lid open,” “debouncing,” “pulse sent,” “fault,” and
“recovery.” When the washer works again, that LED becomes your tiny victory flag.

A Practical Example: Reviving a Washer With a Dead “Start” Button

Let’s paint a scenario that’s common and relatively sane: the washer powers on, the display might light up, but the
Start button is inconsistentsometimes it works, sometimes it doesn’t. Replacement UI boards can be expensive,
out of stock, or annoyingly bundled with the whole console.

A maker-friendly, low-voltage approach looks like this (high-level concept, not wiring instructions):

• Observe the behavior: Does the washer respond to other buttons? Does it beep? Does it fail only on Start?
• Confirm it’s not an interlock: If the lid/door isn’t recognized as closed, Start won’t do anything.
• Add a new input: A durable external button (or hidden internal replacement) becomes the “real” Start button.
• ATtiny reads the new input and generates a clean, consistent output pulse that mimics the original Start signal.
• Include debounce + timing so one press equals one commandevery time.

The magic isn’t that the ATtiny is “more powerful” than the washer. The magic is that the ATtiny is consistent.
It’s the friend who answers texts with punctuation.

Is It Worth It? Repair vs. Replace (A Reality Check)

Even the most satisfying hack has a cost: time, parts, risk, and the possibility that a second component fails next month.
Industry guidance often puts typical washer life around a decade (with plenty of variation), which matters when deciding
whether to invest in a repair strategy.

A reasonable decision framework:

• Repair makes sense when the failure is isolated (a known weak UI, a flaky switch signal, a recoverable logic issue).
• Replace makes sense when there’s repeated electrical failure, water damage, motor issues, or multiple subsystems failing.
• Stop immediately if the machine trips breakers, shocks, smells burnt, or shows signs of overheating.

In other words: bring a washer back from the dead if you’re confident it’s a small “brain problem,” not a bigger
“body problem.”

Conclusion: The Tiny Chip That Reminds Us How Fixing Should Feel

A resurrected washer is more than a savings story. It’s a reminder that repair is part detective work, part engineering,
and part stubborn optimism. The ATtiny shines in that sweet spot where a small amount of clean logic can stabilize an
aging systemespecially on the low-voltage control side.

If you take the careful approachprioritizing safety, preserving interlocks, designing for fail-safe behavioryou can
turn “dead washer” from a stressful crisis into a surprisingly fun case study in practical embedded systems.
And the next time your washer goes silent, you’ll know to ask a better question than “Is it dead?”
You’ll ask: “What’s it trying to tell me?”

Extra: 10 Real-World Experiences From the “Dead Washer” Trenches (500-ish Words)

1) The washer is a storyteller. It rarely fails with one dramatic explosion. It usually drops hints:
a delayed start, a double-beep you didn’t notice, a cycle that stalls only on Tuesdays when you wash towels the size of small countries.
When you finally pay attention, you realize the machine has been whispering, not screaming.

2) Intermittent problems are the worst… and the most fixable. A dead-short component is obvious.
A “sometimes” button is psychological warfare. That’s where a microcontroller fix can feel like therapy:
you take chaos and replace it with repeatable behavior.

3) Debouncing is not optional. The first time you test a raw button input, it seems fine. Then you run a real cycle,
the washer vibrates like it’s trying to escape the basement, and suddenly one press becomes three.
Software debounce is the embedded equivalent of noise-canceling headphones.

4) Brownouts are sneaky. You don’t need a thunderstorm for power weirdness.
Motors switching on and off can nudge voltages around just enough to confuse logic.
A system that behaves perfectly on the bench can act haunted when installed.
Brown-out detection and a sensible startup routine are how you exorcise that ghost.

5) Watchdogs don’t make code better; they make failure shorter.
There’s a big emotional difference between a machine that locks up and stays locked up,
and one that resets and returns to a safe, predictable state. The second one feels “reliable,”
even if it’s occasionally imperfect.

6) Make your “off” truly off. I once watched a prototype come back from a reset and accidentally send a pulse
because a pin floated during boot. Lesson learned: initialize outputs fast, pull things to known states, and assume
the universe will choose the worst possible timing for your mistakes.

7) Label everything. A washer has the unique ability to turn a tidy workspace into a crime scene.
Connectors look “obvious” until you come back the next day and nothing is obvious.
A tiny label now is a huge favor to Future You.

8) Don’t fight the washer’s safety logic. If the lid lock system exists, it exists for a reason.
The “win” is not bypassing safetyit’s restoring correct behavior so the machine can trust its own sensors again.

9) Expect the fix to be boring when it’s correct.
The best outcome is that nothing exciting happens: one press equals one start, every time.
No drama. No randomness. Just laundry. It’s almost disappointinguntil you remember that boring laundry is the goal.

10) The real payoff is confidence.
When you bring a washer back with an ATtiny, you don’t just save a machine.
You learn how to reason about systems: inputs, states, timing, failure modes, and safe defaults.
That knowledge transfers to everythingfrom coffee makers to garage doors to the next “dead” gadget you refuse to give up on.
